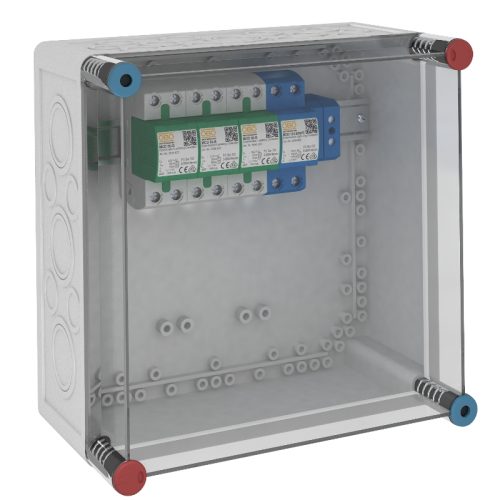

VG housing with MCD 50-B/3+1
Combination arrestor, pre-installed in IP65 housing for use in TN-S and TT networks.
VG…: Lightning arrestor system solution type 1+2 according to DIN EN 61643-11.
• LightningController MCD 50-B and MCD 125-B/NPE mounted in insulating housing IP 65, sealable housing
• Pulsed current 125 kA (10/350 µs), BET-tested
• Conforms to requirements of VDN Directive
• Protection level • Enclosed, non-extinguishing discharge gap
• Suitable for TN-S and TT network systems
Application example: The system solution is used in the pre-meter area according to VDN Directive.
