توضیحات تکمیلی
| وزن | 593 کیلوگرم |
|---|---|

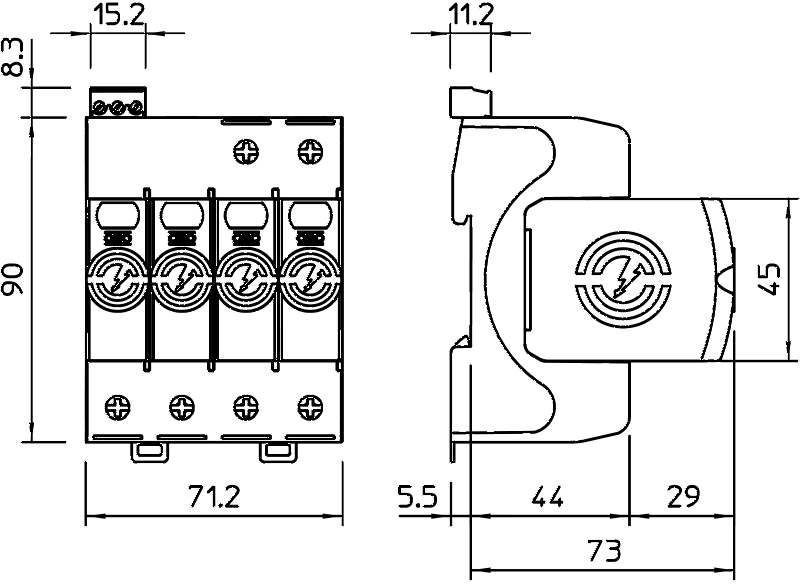

| ابعاد | 71.2 × 44 × 90 سانتیمتر |

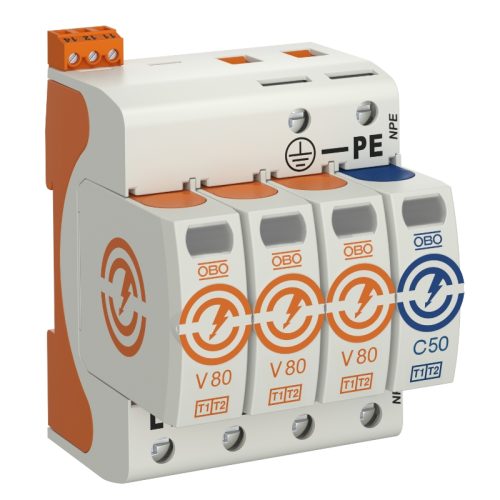

سرج ارستر تایپ 2+1 مدل V80-3+NPE+FS-280 کد 5093812
CombiController V80 3 pole+NPE remote signalling 280 V
Combination arrester, lightning current and surge arrester, type 1+2
• For lightning current equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total
• Impulse current arresting capacity up to 80 kA (8/20)
• Modular, plug-in arrester with cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Plastic to UL 94 V-0
• The remote signalling (FS) variants have a potential-free changeover contact for remote signalling
Application: Lighting current equipotential bonding for buildings of class III and IV.
