توضیحات تکمیلی
| وزن | 645 kg |
|---|---|

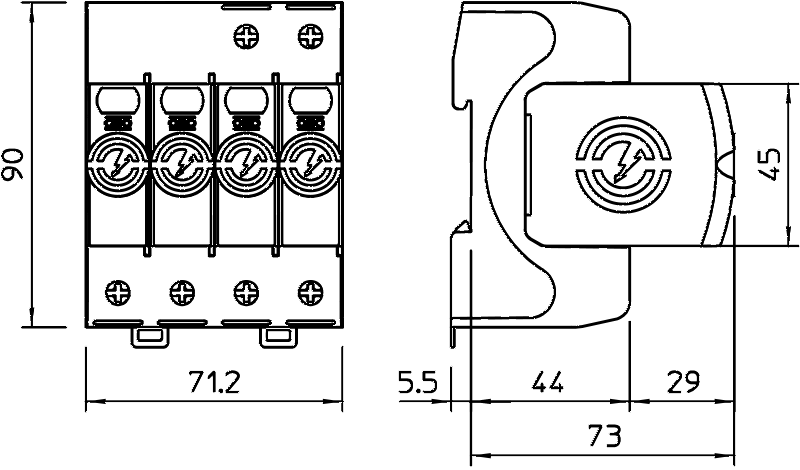

| ابعاد | 71.2 × 44 × 90 cm |

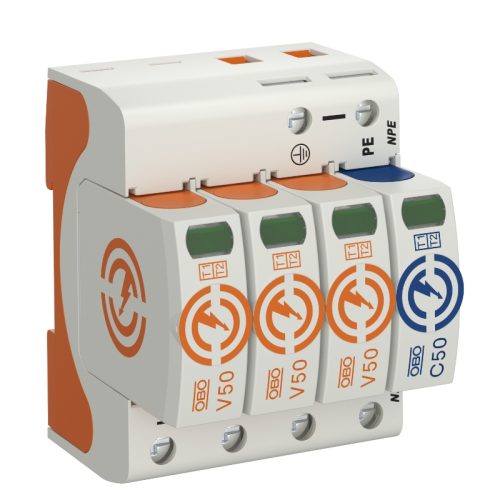

سرج ارستر تایپ 2+1 مدل V50-1+NPE-385 کد 5093586
Combination arrestor V50, 3-pole + NPE 385 V
Lightning current combination arrestor, type 1+2
• For lightning current equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total
• Modular, plug-in arrestor with cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Plastic to UL 94 V-0
• The remote signalling (FS) variants have a potential-free changeover contact for remote signalling
Application: Lighting current equipotential bonding for buildings of class III and IV.
