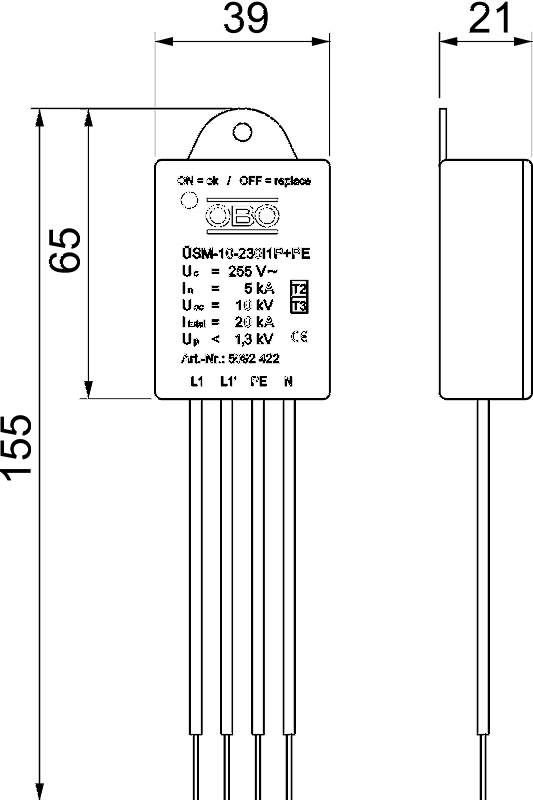

|ابعاد||39 × 21 × 65 cm|

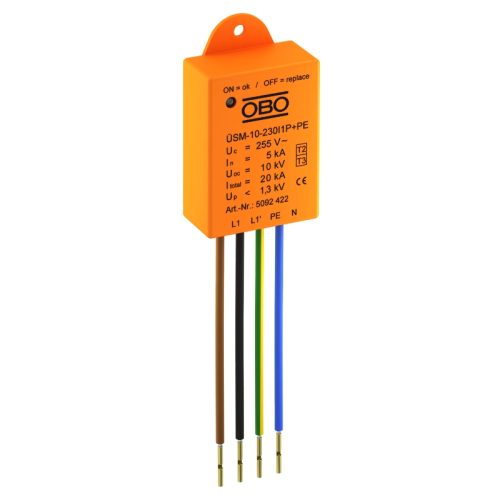

Surge protection module ÜSM-10-230l1P+PE
Surge protection module type 2+3 to DIN EN 61643-11 for 230/400 V power grids.
Appropriate for the protection of electronic devices and LED drivers.
• With function display and switch-off of the load circuit when a SPD fails
• Small size for the installation in the pole connection box or upstream of the LED driver
• Use in the LED luminaire head upstream of the electronic LED driver

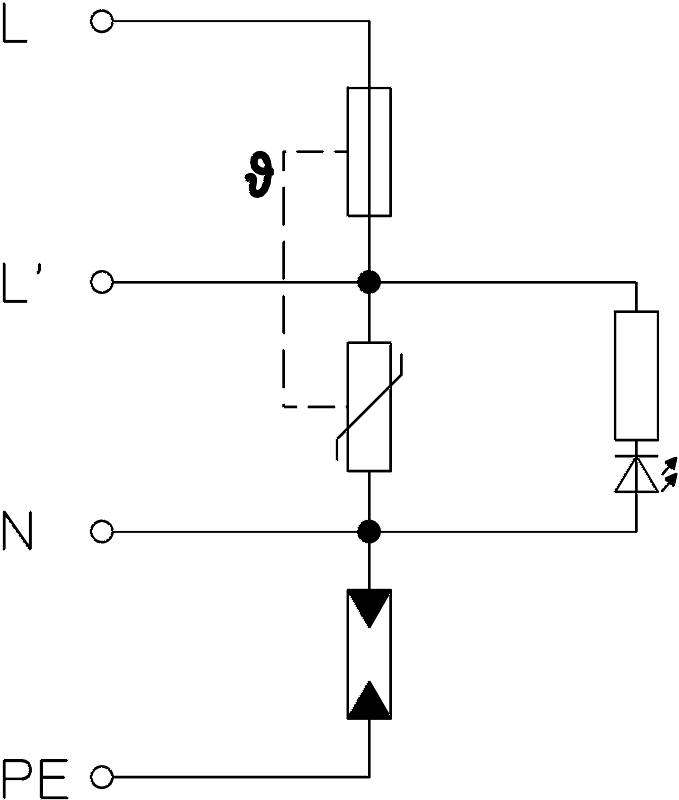

• Protective circuit with a maximum arresting capacity of 10 kA
• Reduction of overvoltage to under 1,300 V (protection level)
• For LED luminaires with PE connection
Application: In the cable transition box, junction boxes, cable duct to underfloor systems
